Frame Alignment

Photos for an article that I wrote on frame alignment for a series called “Builders Speak” in Bicycle Quarterly (Vol. 4, No. 3)

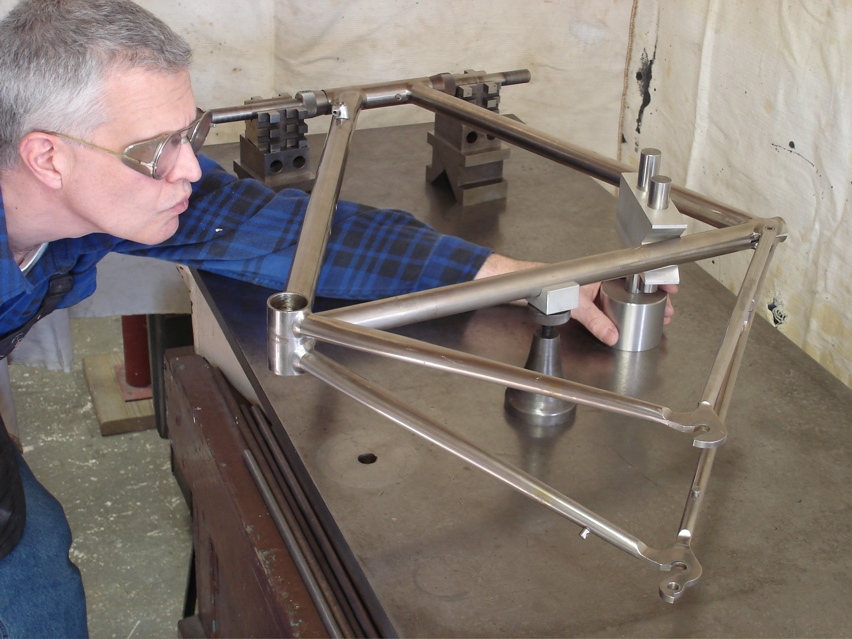

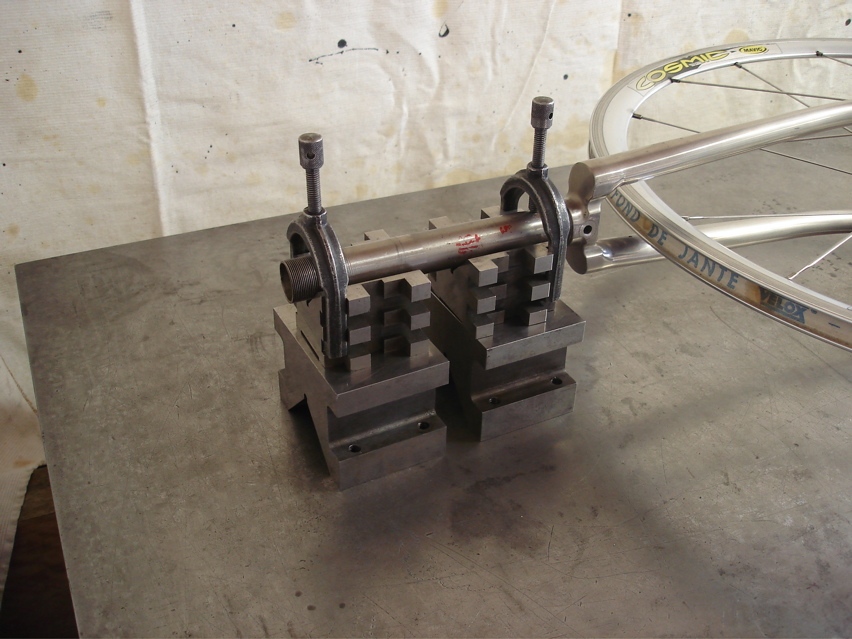

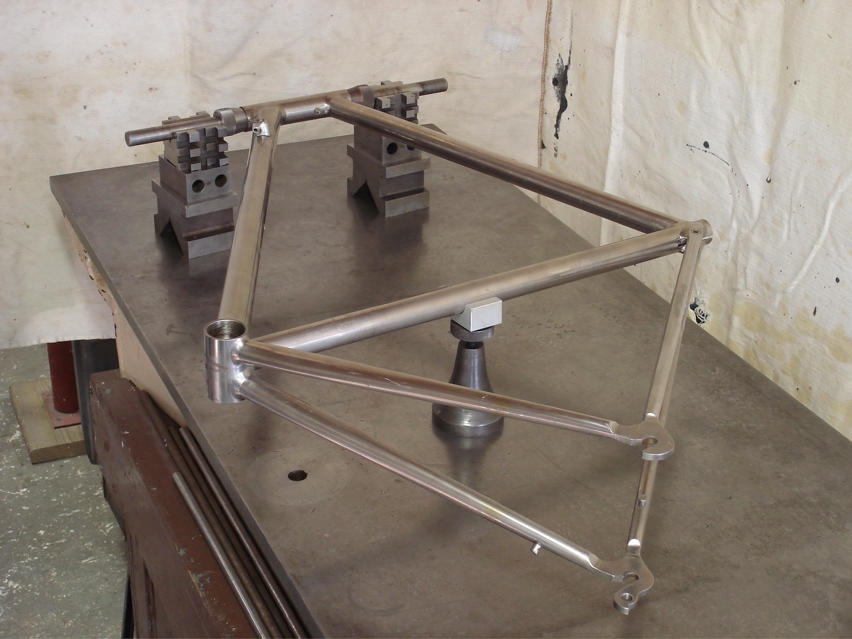

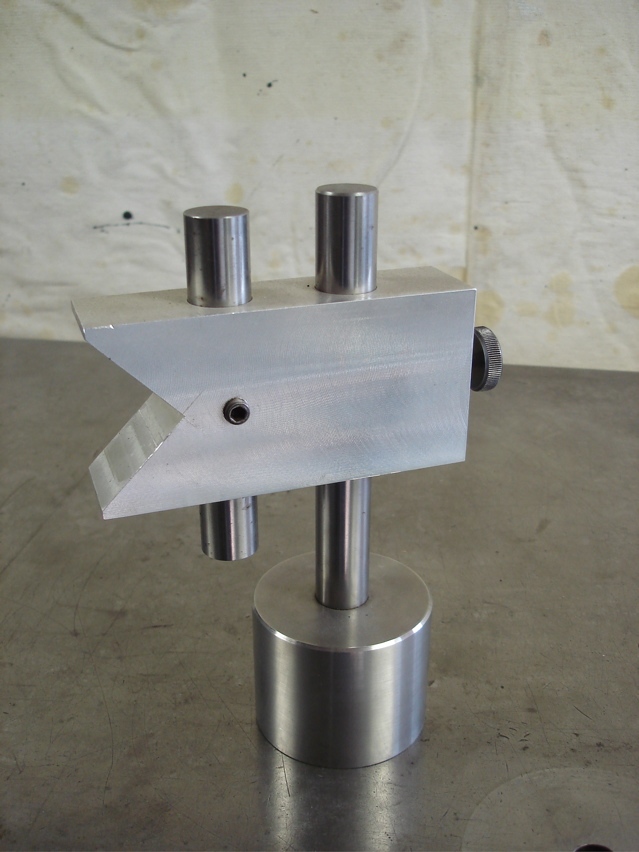

These days I have a bigger table and a much nicer set-up for mounting a frame by the head tube.

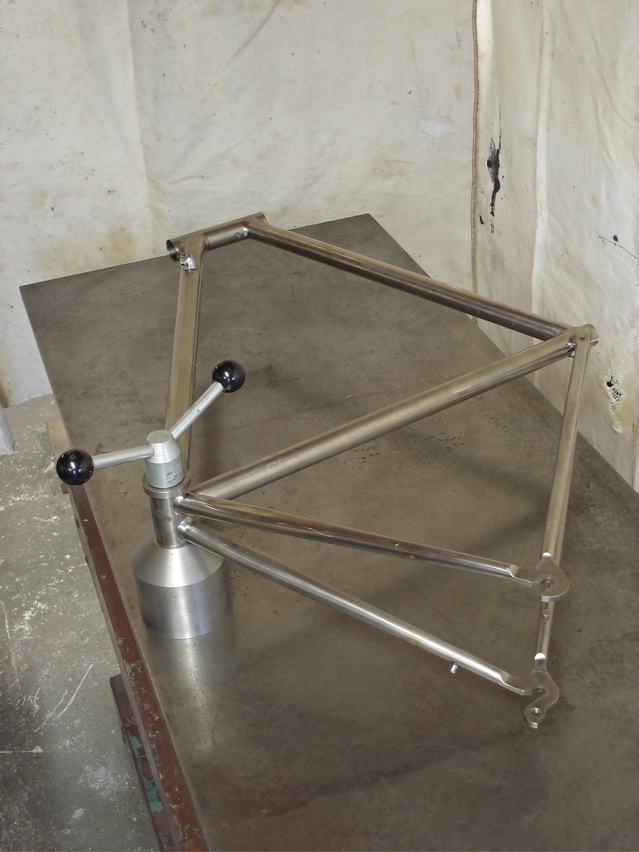

I am very much an advocate for using the head tube of the frame as my datum, as opposed to using the bottom brakes shell.
